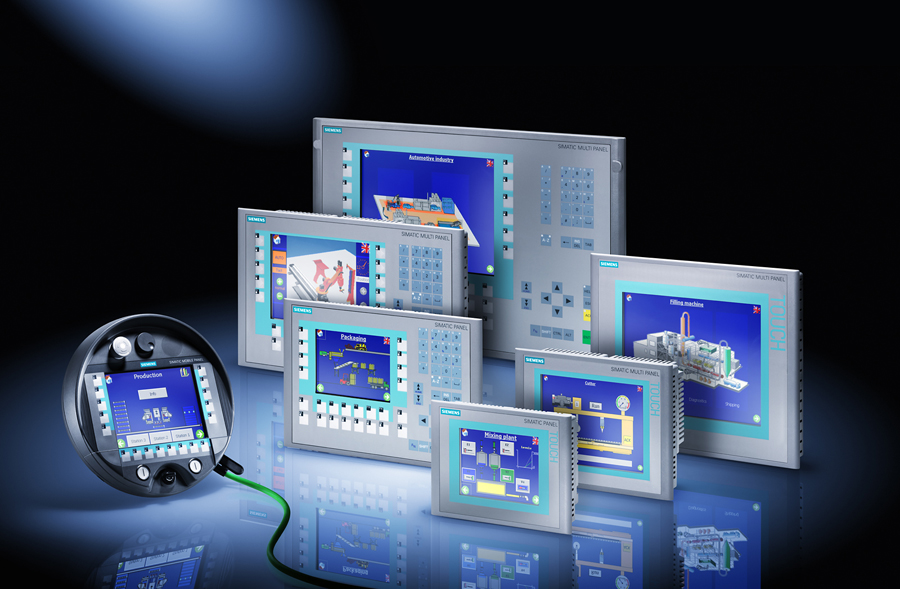

SIMATIC HMI - The Human Machine Interface

 SIMATIC Key Panels

Operator panels with bus capability for easy and direct operation of machines.

The Key Panels, successors to the Push Button Panels, are also ready-to-use operator keypads and support PROFINET.

Alternatives to individually wired long-stroke keys. They are designed for direct operator control of the machine.

Key Panels provide a cost-effective, versatile and space-saving combination of a host of basic functions, and they reduce configuration and installation costs to a minimum.

  • SIMATIC HMI blank front design
  • SIMATIC HMl KP8 PN SIMATIC HMl KP8 PN
  • SIMATIC HMl KP8F PN SIMATIC HMl KP8F PN
  • SIMATIC HMl KP32F PN (PROFIsafe can be switched off)

SIMATIC Basic Panels

Operator panels with basic functionality for small machines and plants.

Basic Panels 2nd generation

With their fully developed HMI basic functions, 2nd generation SIMATIC HMI Basic Panels are the ideal entry level series for simple HMI applications.

The device family offers panels with 4", 7", 9" and 12" displays, as well as combined key and touch operation.

  • SIMATIC HMI KTP400 Basic
  • SIMATIC HMI KTP700 Basic
  • SIMATIC HMI KTP700 Basic DP (available soon)
  • SIMATIC HMI KTP900 Basic
  • SIMATIC HMI KTP1200 Basic (available soon)
  • SIMATIC HMI KTP1200 Basic DP (available soon)
Basic Panels 1st generation

SIMATIC HMI Basic Panels are the ideal entry-level series for operator control and monitoring of compact machines and plants.

They offer pixel graphics displays and integrated HMI basic functionality across all displays sizes.
The series encompasses display sizes from 3" to 15", and the operating philosophy ranges from purely key devices and versions with touch screen and additional tactile keys, to purely touch devices.

  • SIMATIC HMI KP300 Basic mono PN
  • SIMATIC HMI KP400 Basic color PN
  • SIMATIC HMI KTP400 Basic mono PN
  • SIMATIC HMI KTP400 Basic color PN
  • SIMATIC HMI KTP600 Basic mono PN
  • SIMATIC HMI KTP600 Basic color DP
  • SIMATIC HMI KTP600 Basic color PN
  • SIMATIC HMI KTP1000 Basic color DP
  • SIMATIC HMI KTP1000 Basic color PN
  • SIMATIC HMI TP1500 Basic color PN

SIMATIC Comfort Panels

HMI devices with high-end functionality for demanding applications.

Design

KTP400 Comfort
  • 4.3" widescreen TFT display, resolution 480 x 272, 16 million colors
  • 1 PROFINET and 1 PROFIBUS interface
  • Touch screen and membrane keyboard with 4 tactile function keys
  • Innovative successor to the TP 177B Touch Panels 4"
KP400 Comfort
  • 4.3" widescreen TFT display, resolution 480 x 272, 16 million colors
  • 1 PROFINET and 1 PROFIBUS interface
  • Membrane keyboard with 8 tactile function keys and system keyboard
  • Innovative successor to the Operator Panels OP77B
TP700 Comfort
  • 7.0" widescreen TFT display, resolution 800 x 480, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the TP 177B/TP 277 Touch Panels and to the Multi Panel MP 177 6"
KP700 Comfort
  • 7.0" widescreen TFT display, resolution 800 x 480, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Membrane keyboard with 24 function keys and system keyboard
  • Innovative successor to the OP 177B/OP 277 6" Operator Panels
TP900 Comfort
  • 9.0" widescreen TFT display, resolution 800 x 480, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 277 8" Touch
KP900 Comfort
  • 9.0" widescreen TFT display, resolution 800 x 480, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Membrane keyboard with 26 function keys and system keyboard
  • Innovative successor to the Multi Panel MP 277 8" Key
TP1200 Comfort
  • 12.1" widescreen TFT display, resolution 1280 x 800, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 277 10" Touch
KP1200 Comfort
  • 12.1" widescreen TFT display, resolution 1280 x 800, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Membrane keyboard with 34 function keys and system keyboard
  • Innovative successor to the Multi Panel MP 277 10" Key
TP1500 Comfort
  • 15.4" widescreen TFT display, resolution 1280 x 800, 16 million colors
  • 2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 377 12" Touch
KP1500 Comfort
  • 15.4" widescreen TFT display, resolution 1280 x 800, 16 million colors
  • 2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Membrane keyboard with 36 function keys and system keyboard
  • Innovative successor to the Multi Panel MP 377 12" Key
TP1900 Comfort
  • 18.5" widescreen TFT display, resolution 1366 x 768, 16 million colors
  • 2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 377 15" Touch
TP2200 Comfort
  • 21.5" widescreen TFT display, resolution 1920 x 1080, 16 million colors
  • 2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 377 19" Touch

SIMATIC Mobile Panels

Mobile operator panels with or without cables for direct operator control of the plant and machine from any location.


SIMATIC Micro Panels

Operator panels for small machines and specially designed for SIMATIC S7-200.




SIMATIC Panels

Compact and rugged operator panels for use directly at the machine – finely graded in performance and convenience and available as Operator Panels and Touch Panels.


SIMATIC Multi Panels

Multifunctional platforms that, in addition to visualization, also perform other automation tasks such as controlling.


HMI software

Flexibility in any HMI application – from Basic Panels through to process visualization

SIMATIC WinCC in the Totally Integrated Automation Portal (TIA Portal) is part of a new, integrated engineering framework which offers a uniform engineering environment for programming and configuration of control, visualization and drive solutions.

With WinCC in the TIA Portal it is possible to configure HMI applications ranging from very simple operating solutions with Basic Panels and Comfort Panels up to SCADA applications on PC-based multi-user systems. The possible range of solutions is thus greatly extended compared to the predecessor product SIMATIC WinCC flexible.

SIMATIC WinCC V7 remains available for extremely complex applications featuring Plant Intelligence solutions, integrated archive servers or redundant architectures, whereas WinCC Open Architecture addresses applications with demanding customization requirements, also on non-Windows platforms.




Download cataloge :

Catalog ST80/ ST PC Edition 2014:Human Machine Interface Systems/PC-based Automation

Manuals / Operating instructions
